FULLY EQUIPPED
Okuma GENOS L200E-M with AWS Load n Go Robotic Arm
Okuma GENOS L200E-M with AWS Load n Go Robotic Arm is an entry-level 2-axis CNC horizontal lathe paired with Automation Within Reach (AWS) Load & Go robotic automation for simple, cost-effective part loading/unloading.
Key specs (machine):
-
Max turning diameter: ~8"
-
Max turning length: ~12"
-
Spindle: 6" chuck - up to 6,000 rpm - integral motor
-
Control: OSP-P300A
-
Features: Thermo-Friendly Concept - rigid slant bed - high precision for small/medium parts.
Load & Go (AWS):
-
Pre-engineered robotic cell - 6-axis robot arm
-
Handles low-volume/high-mix - quick setup - no complex programming
-
Part weight: typically, up to 20 lbs
-
Enables lights-out/unmanned operation - fast ROI for shops.

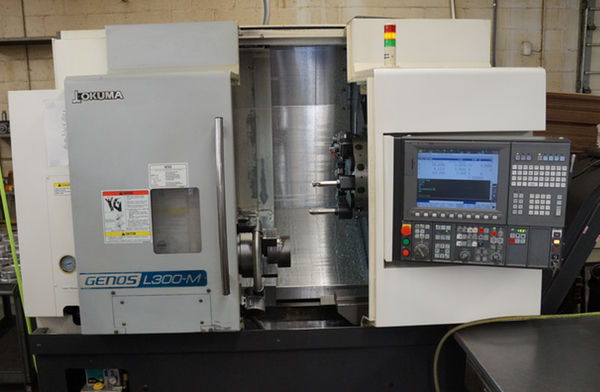

Okuma Genos L33-M
Okuma GENOS L300-M is a compact horizontal CNC lathe with live tooling for turning + milling.
Key specs:
-
Max turning diameter: 11.81" (300 mm)
-
Max turning length: 17.72" (450 mm)
-
Chuck: 10" (A2-8)
-
Spindle: up to 3,800 rpm, 15-20 hp
-
Live tooling: 12-station turret
-
Rapid traverse: X 984 ipm / Z 1,180 ipm
-
Control: OSP-P300LA
Samsung SK35
Samsung SL 35 (SL-35/1500) is a heavy-duty 2-axis horizontal CNC turning center with long bed.
Key specs:
-
Max turning diameter: 16.5"
-
Swing: 23.6"
-
Max turning length: 60.2"
-
Chuck: 15"
-
Bar capacity: 4.6"
-
Spindle: 2,000 rpm / 30 hp
-
Turret: 10-12 station (BMT65 on MC/live-tool version)
-
Control: Fanuc 0i-TD
-
Features: Chip conveyor, for large shafts/pipes.
Heavy-duty for oil/gas and heavy industry.
Hardinge GS-51 Lathe w/ Barfeeder
Hardinge GS-51 (GS-51MS config) with live tooling, subspindle, barfeeder and part catcher is a compact precision CNC turning center for complete front/back machining in one setup.
Key specs:
-
Chuck: 8" (A2-6)
-
Bar capacity: 2"
-
Max turning dia/length: 11.1" / 16"
-
Spindles: Main 5,000 rpm / 25 hp; sub A2-5
-
Live tooling: 12-station turret + C-axis
-
Rapids: 1,181 ipm
-
Control: Fanuc 0i-TD
-
Features: Collet-ready spindle, LNS barfeeder, parts catcher, chip conveyor; ideal for high-accuracy medical/aero/auto parts.

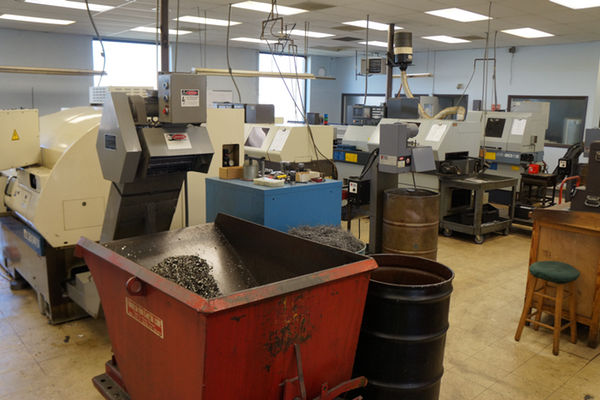

Swiss Machines w/ Barfeeders
Swiss-type CNC Lathes with Barfeeders are precision sliding-headstock turning centers paired with automatic bar feeders for continuous, lights-out production of small, complex parts.
Key specs:
-
Bar capacity: 3–32 mm diameter (12 foot bars)
-
Max part length: 100–300 mm
-
Spindles: main + sub, 15k
-
Tooling: gang/turret + live tools, Y-axis
-
Barfeeder: hydrodynamic/magazine type for quick reload
-
Accuracy: ±0.0001" (2 µm) via guide bushing
2 Axis CNC Lathes w/ Barfeeders
2-Axis CNC Lathes with Barfeeders are horizontal turning centers with automatic bar feeders for continuous, lights-out production of simple turned parts.
